Our line of MB diamond micron powders are precisely produced from selected metal bond diamond and are recommended for resin bond (phenolic), vitrified bond and electroplated bond systems.
All MB micron products are recommended for polishing or lapping glass, PCD, ceramics finish grinding carbide steel combinations and for chamfer grinding PCD/PCBN especially the MB-M1B where surface finish quality is a critical factor.
- Resin Bond
- Vitrified Bond
- Single Layer Bond

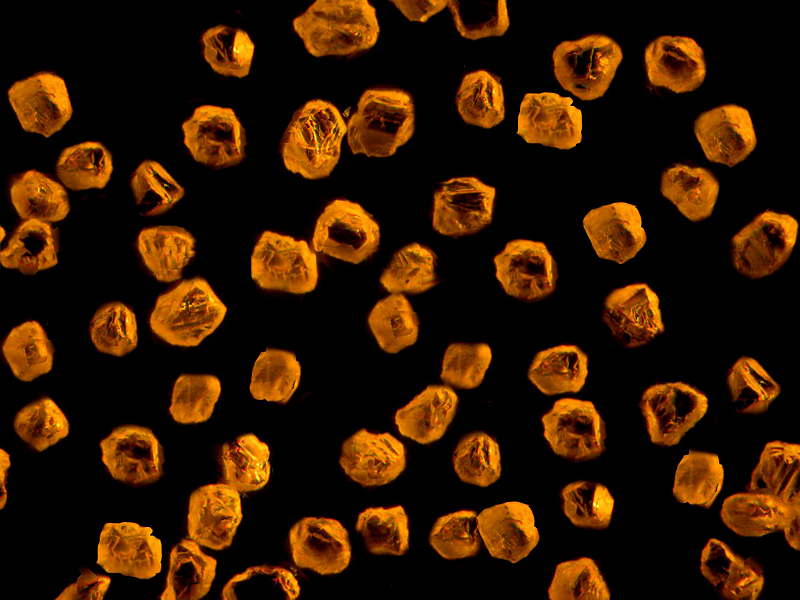

MB-M1B
MB-Micron
An enhanced blocky shaped metal bond micron that delivers a tightly controlled size, shape and surface properties. The presence of consistent uniform crystals makes the MB-M1B a superior micron product.
- Resin Bond
- Vitrified Bond
- Single Layer Bond

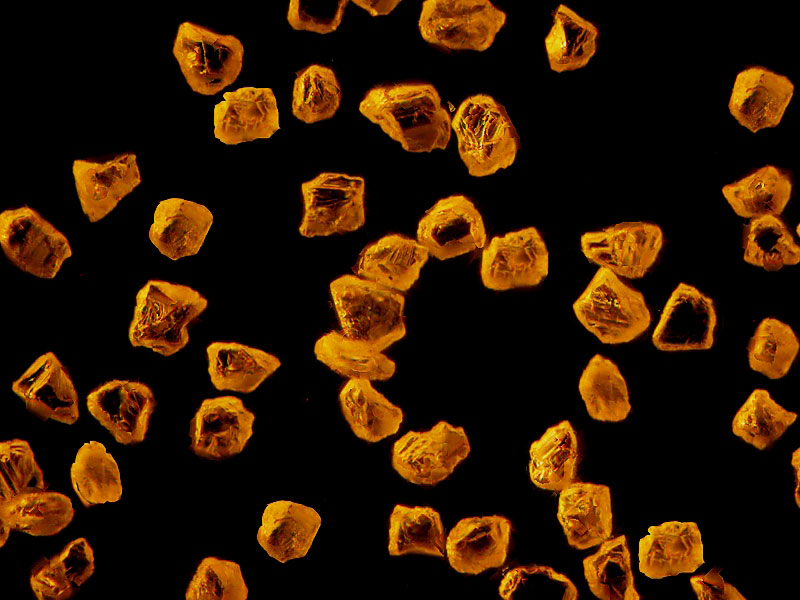

MB-M1
MB-Micron
A blocky shaped, tough metal bond micron with uniform particle distribution and tight oversize control, the MB-M1 is a sound choice when surface finish integrity is critical.
Resin Bond
systems are widely used for all-purpose superabrasive grinding applications in either phenolic or polyimide bonds. Resin bond systems can be utilized in either wet or dry grinding operations and offer excellent particle retention and part finish.
Vitrified Bond
systems are manufactured from ceramic materials that are strong, durable and brittle. Vitrified bonds are very effective in advanced grinding operations because of their ability to hold the abrasive and reduce heat generation in the grinding zone due to their high porosity levels when compared to other bond types.
Single Layer Bond
systems (electroplated and brazed) hold a single layer of superabrasive grains bonded to a precision machined form. Electroplated systems are bonded with a Nickel matrix and leave approximately 50% of the abrasive exposed while brazed systems leave approximately 80% of the abrasive exposed. Single layer bond systems typically do not require dressing.
| Micro Size | 0-0.25 | 0-0.5 | 0-1 | 0-2 | 1-2 | 1-3 | 2-4 | 3-5 | 4-6 | 4-8 | 6-10 | 8-12 | 8-15 | 10-20 | 12-22 | 15-25 | 20-30 | 25-35 | 30-40 | 40-60 |
| MB-M1 |  |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-M1 N30 |  |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-M1 N56 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-M1 C50 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-M1B | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ingredients
Product
Metal Bond Micron Powder
Proprietary
No
CAS Number
7782-40-3
NIOSH Number
1004135DI
OSHA PEL
N/K
ACGIH TLV
N/K
Physical Data
Appearance
Gray to greenish yellow powder
Specific Gravity
3.1 – 4.1
Vapor Density
N/A
Boiling Point
N/A
Vapor Pressure
N/A
Solubility in Water
No
Percent Volatiles
N/A
Fire & Explosion Data
Flash Point
N/A
Lower Explosive Limit
N/A
Upper Explosive Limit
N/A
Extinguishing Media Unusual F&E
Chemical Powder
Hazards
Possible fire and explosion in dust form when exposed to heat, flame, or spark
Health Hazard Data
Primary Routes of Entry
Inhalation, Eye contact, Ingestion
Effect of over Exposure
Inhalation – Tissue irritation Skin contact – Tissue irritation Eye contact – Tissue irritation Ingestion – Tissue irritation
Reactivity
Stability
Stable
Conditions to Avoid
Large amounts of airborne fine powder suspended in confined areas
Incompatibility
Oxidizers and open flame
Hazardous Decomp Products
Carbon dioxide and water vapor
Hazardous Polymerzation
Will not occur
Spill or Leak Procedures
Action to be taken
Minimize airborne dust generation – Provide adequate ventilation
Disposal
Clean up utilizing respiratory equipment in accordance with Local, State, and Federal Regs May be land filled
Special Protection Information
Respiratory
NIOSH/MSHA approved dust mask
Ventilation
Adequate ventilation / local exhaust
Gloves
Impervious
Eye
Chemical goggles
Special Precautions
Handling & Storage
Prevent dust from becoming airborne – Avoid contact with eyes; flush with water – Contact with skin may cause irritation
