Our WWS line of metal bond crystalline diamond products are widely used in resin bond, metal bond, vitreous bond and electroplated bond systems.
Uniform shape and size control, along with consistent fracturing

modes for each respective product make our WWS line of products ideal for a variety of glass grinding applications, grinding tungsten carbide, fiberglass and other composite materials.

  • Resin Bond
  • Vitrified Bond
  • Metal Bond
  • Single Layer Bond

WWS-200

Low - Medium Friability

Blocky Shape
Density 3.52 g/cm3

A medium quality, semi-crystalline blocky shaped crystal with good toughness and thermal stability. Increased friability vs. the WWS-300 and an improved surface texture on the WWS-200’s crystal facets produce a free cutting crystal that regenerates new cutting edges with moderate grinding force.

  • Vitrified Bond
  • Metal Bond
  • Single Layer Bond

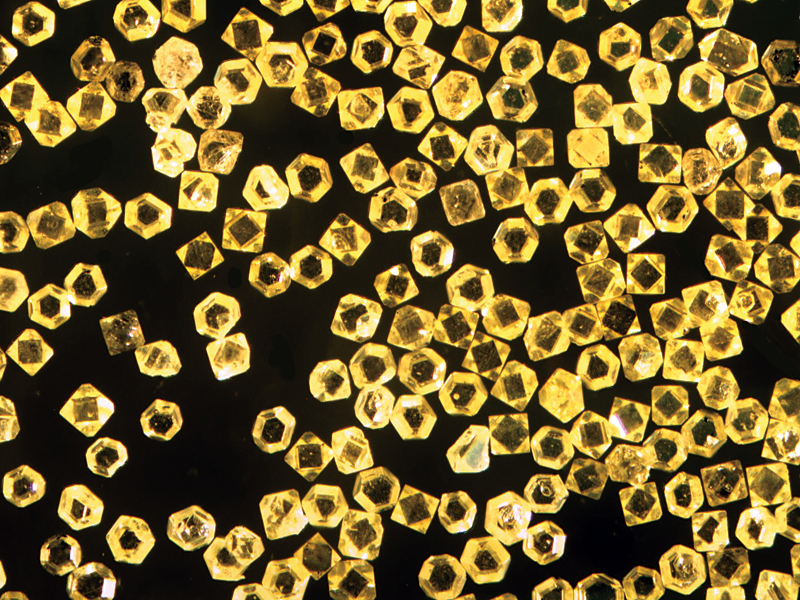

WWS-300

Low Friability

Cubo-Octahedral
Shape Density 3.52 g/cm3

High quality cubo-octahedral diamond that is thermally stable, requires high grinding forces to generate new cutting edges and fractures in a controlled manner. Uniform shape, along with the WWS-300’s free cutting capability.

  • Metal Bond
  • Single Layer Bond

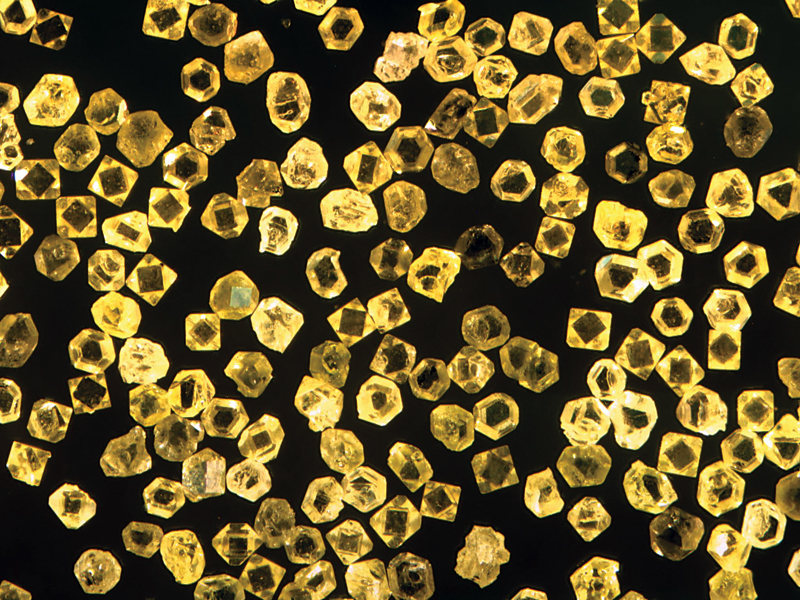

WWS-400

Low Friability

Cubo-Octahedral
Shape Density 3.52 g/cm3

Excellent cubo-octahedral crystal shape, high impact strength and very high thermal stability make the WWS-400 suitable for demanding applications where high production rates are desired.

  • Metal Bond
  • Single Layer Bond

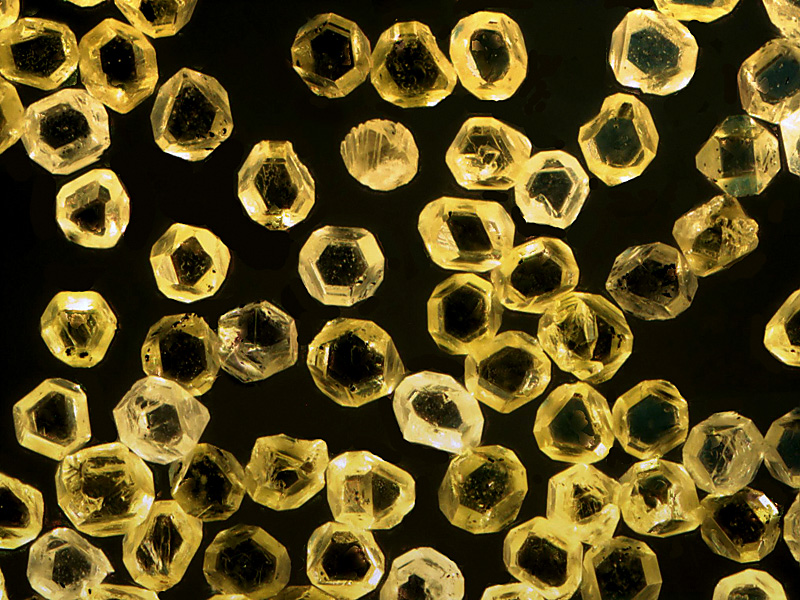

WWS-500

Very Low Friability

Cubo-Octahedral
Shape Density 3. g/cm3

Uniform shaped cubo-octahedral crystals that exhibit very high toughness and exceptional thermal stability along with minimal internal impurities.

Resin Bond

systems are widely used for all-purpose superabrasive grinding applications in either phenolic or polyimide bonds. Resin bond systems can be utilized in either wet or dry grinding operations and offer excellent particle retention and part finish.

Vitrified Bond

systems are manufactured from ceramic materials that are strong, durable and brittle. Vitrified bonds are very effective in advanced grinding operations because of their ability to hold the abrasive and reduce heat generation in the grinding zone due to their high porosity levels when compared to other bond types.

Metal Bond

systems are the toughest formed bonds available and are recommended for wet grinding. Metal bonds exhibit high abrasive and heat resistance along with excellent form holding capabilities leading to extended tool life.

Single Layer Bond

systems (electroplated and brazed) hold a single layer of superabrasive grains bonded to a precision machined form. Electroplated systems are bonded with a Nickel matrix and leave approximately 50% of the abrasive exposed while brazed systems leave approximately 80% of the abrasive exposed. Single layer bond systems typically do not require dressing.

Friability Comparisons

US Mesh (FEPA) 60/80 (D252) 80/100 (D181) 100/120 (D151) 120/140 (D126) 140/170 (D107) 170/200 (D91) 200/230 (D76) 230/270 (D64) 270/325 (D54) 325/400 (D46) 400/500 (D32)
WWS-200
WWS-300
WWS-400
WWS-500

Ingredients

Product
Metal Bond Diamond Powder
Proprietary
No
CAS Number
7782-40-3
NIOSH Number
1004135DI
OSHA PEL
N/K
ACGIH TLV
N/K

Physical Data

Appearance
Gray to greenish yellow powder
Specific Gravity
3.48-3.52
Vapor Density
N/A
Boiling Point
N/A
Vapor Pressure
N/A
Solubility in Water
No
Percent Volatiles
N/A

Fire & Explosion Data

Flash Point
N/A
Lower Explosive Limit
N/A
Upper Explosive Limit
N/A
Extinguishing Media Unusual F&E
Chemical Powder
Hazards
Possible fire and explosion in dust form when exposed to heat, flame, or spark

Health Hazard Data

Primary Routes of Entry
Inhalation, Eye contact, Ingestion
Effect of over Exposure
Inhalation – Tissue irritation Skin contact – Tissue irritation Eye contact – Tissue irritation Ingestion – Tissue irritation

Reactivity

Stability
Stable
Conditions to Avoid
Large amounts of airborne fine powder suspended in confined areas
Incompatibility
Oxidizers and open flame
Hazardous Decomp Products
Carbon dioxide and water vapor
Hazardous Polymerzation
Will not occur

Spill or Leak Procedures

Action to be taken
Minimize airborne dust generation – Provide adequate ventilation
Disposal
Clean up utilizing respiratory equipment in accordance with Local, State, and Federal Regs May be land filled

Special Protection Information

Respiratory
NIOSH/MSHA approved dust mask
Ventilation
Adequate ventilation / local exhaust
Gloves
Impervious
Eye
Chemical goggles

Special Precautions

Handling & Storage
Prevent dust from becoming airborne – Keep away from sparks and open flame – Avoid contact with eyes; flush with water – Ingestion or inhalation; seek medical attention
