Our line of metal bond non-crystalline products are recommended for resin bond, vitrified bond, metal bond and electroplated bond systems where a more free cutting crystal is required.
These products require less force per grit to regenerate new cutting edges vs. our WWS-200, thus providing a free cutting material that requires less power when grinding.
Recommended for glass grinding, PCD/PCBN grinding and lapping, resin bond stone polishing tools and dental burrs.
- Resin Bond
- Vitrified Bond
- Single Layer Bond

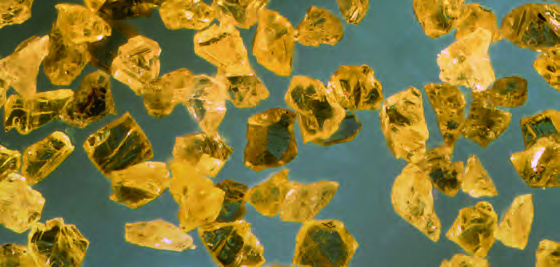

MB-100
Medium Friability
Angular Shape
Density 3.52 g/cm3
Friable, angular shaped crystal that rapidly regenerates new cutting edges with low grinding forces. Rough surface texture provides increased mechanical retention in most resin bond systems.
- Resin Bond
- Vitrified Bond
- Single Layer Bond

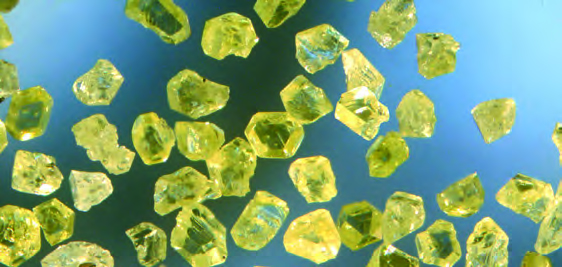

MB-150
Medium - Low Friability
Semi Blocky Shape
Density 3.52 g/cm3
Semi-blocky shaped crystal that is recommended where the optimal balance of free cutting action and extended tool life is desired. The MB- 150’s ability to continuously regenerate new cutting edges and high impact resistance make it an excellent choice when grinding difficult materials.
- Resin Bond
- Metal Bond
- Single Layer Bond

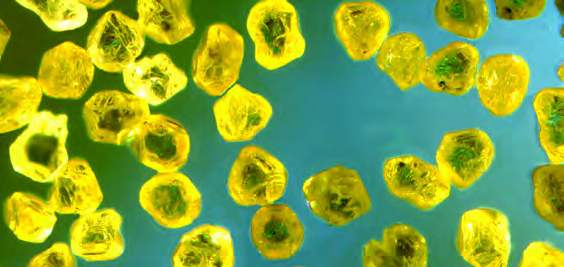

MB-200
Low Friability
Blocky Shape
Density 3.52 g/cm3
Uniform, blocky shaped crystal that requires the most force per grit to generate new cutting edges. The MB- 200 provides long tool life where high material rates are desired.
Resin Bond
systems are widely used for all-purpose superabrasive grinding applications in either phenolic or polyimide bonds. Resin bond systems can be utilized in either wet or dry grinding operations and offer excellent particle retention and part finish.
Vitrified Bond
systems are manufactured from ceramic materials that are strong, durable and brittle. Vitrified bonds are very effective in advanced grinding operations because of their ability to hold the abrasive and reduce heat generation in the grinding zone due to their high porosity levels when compared to other bond types.
Single Layer Bond
systems (electroplated and brazed) hold a single layer of superabrasive grains bonded to a precision machined form. Electroplated systems are bonded with a Nickel matrix and leave approximately 50% of the abrasive exposed while brazed systems leave approximately 80% of the abrasive exposed. Single layer bond systems typically do not require dressing.
Friability Comparisons
| US Mesh (FEPA) | 30/35 (D601) | 35/40 (D501) | 40/45 (D426) | 45/50 (D356) | 50/60 (D301) | 60/80 (D252) | 80/100 (D181) | 100/120 (D151) | 120/140 (D126) | 140/170 (D107) | 170/200 (D91) | 200/230 (D76) | 230/270 (D64) | 270/325 (D54) | 325/400 (D46) | 400/500 (D32) |
| MB-100 |  |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-100 N30 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-100 N56 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-100 C50 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-150 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-150 N30 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-150 N56 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-150 C50 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-200 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-200 N56 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB-200 C50 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ingredients
Product
Metal Bond Diamond Powder
Proprietary
No
CAS Number
7782-40-3
NIOSH Number
1004135DI
OSHA PEL
N/K
ACGIH TLV
N/K
Physical Data
Appearance
Gray to greenish yellow powder
Specific Gravity
3.48-3.52
Vapor Density
N/A
Boiling Point
N/A
Vapor Pressure
N/A
Solubility in Water
No
Percent Volatiles
N/A
Fire & Explosion Data
Flash Point
N/A
Lower Explosive Limit
N/A
Upper Explosive Limit
N/A
Extinguishing Media Unusual F&E
Chemical Powder
Hazards
Possible fire and explosion in dust form when exposed to heat, flame, or spark
Health Hazard Data
Primary Routes of Entry
Inhalation, Eye contact, Ingestion
Effect of over Exposure
Inhalation – Tissue irritation Skin contact – Tissue irritation Eye contact – Tissue irritation Ingestion – Tissue irritation
Reactivity
Stability
Stable
Conditions to Avoid
Large amounts of airborne fine powder suspended in confined areas
Incompatibility
Oxidizers and open flame
Hazardous Decomp Products
Carbon dioxide and water vapor
Hazardous Polymerzation
Will not occur
Spill or Leak Procedures
Action to be taken
Minimize airborne dust generation – Provide adequate ventilation
Disposal
Clean up utilizing respiratory equipment in accordance with Local, State, and Federal Regs May be land filled
Special Protection Information
Respiratory
NIOSH/MSHA approved dust mask
Ventilation
Adequate ventilation / local exhaust
Gloves
Impervious
Eye
Chemical goggles
Special Precautions
Handling & Storage
Prevent dust from becoming airborne – Keep away from sparks and open flame – Avoid contact with eyes; flush with water – Ingestion or inhalation; seek medical attention
