Our WSG saw grit line of metal bond crystalline diamond products is specifically engineered to satisfy all stone applications and construction industries, which are mainly used in a wide range of drilling, grinding and sawing applications of glass, stone, asphalt and concrete.

The bright yellow crystals are mostly cubo-octahedral shaped which distinguishes this arrangement from other products as it is characterized to have excellent thermal stability, high impact resistance and ideal particle breakdown integrity.

WSG Shape Distribution

Diamonds for sawing and drilling applications consist of bright yellow crystals that are primarily cubo-octahedral in shape and possess very high strength or toughness, high thermal stability and impact resistance.

WSG Friability Comparisons

The benefits of WWSA’s consistently high quality WSG product line include fast cutting action, dimensional accuracy and cost-effective performance.

Particle shape is carefully monitored to assure proper cutting action in each of the various sawing or drilling applications in all of the toughest to cut workpieces.

  • Vitrified Bond
  • Metal Bond
  • Single Layer Bond

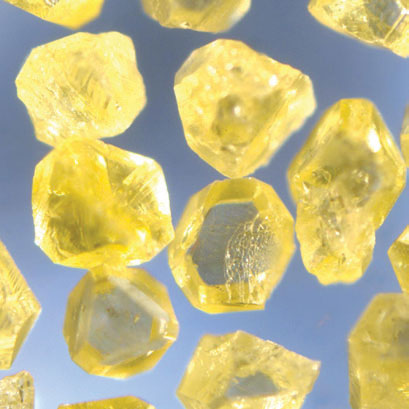

WSG-200

Medium Friability

The WSG-200 is an economic grade and most friable product in our saw grit series with a wider strength and shape distribution than our WSG-300.

  • Vitrified Bond
  • Metal Bond
  • Single Layer Bond

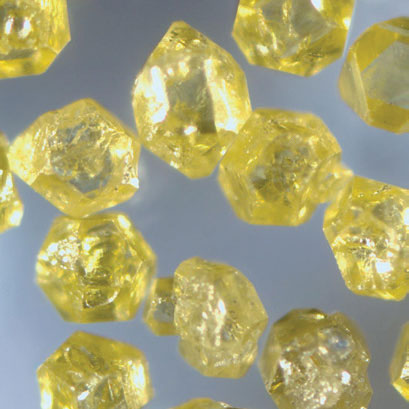

WSG-300

Medium Friability

Combined with a blend of friable crystals and cubo-octahedral diamond, the WSG-300 is designed for moderate impact strength applications.

  • Vitrified Bond
  • Metal Bond
  • Single Layer Bond

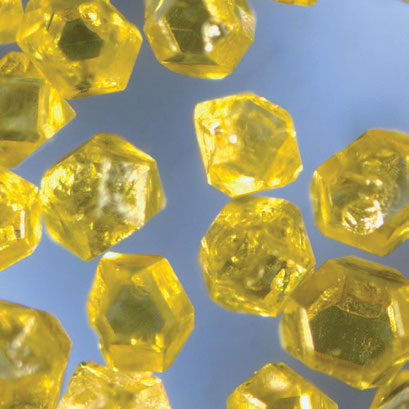

WSG-400

Low - Medium Friability

The WSG-400 offers a higher impact strength while maintaining excellent thermal stability and impact resistance.

  • Vitrified Bond
  • Metal Bond
  • Single Layer Bond

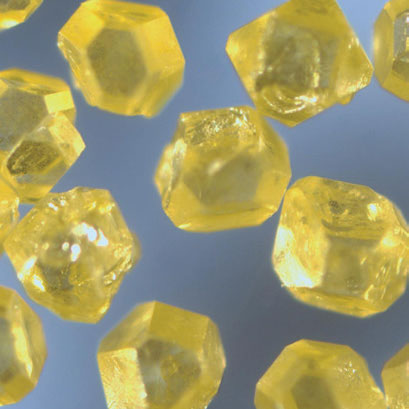

WSG-500

Low - Medium Friability

Shaped with high purity of cubo-octahedral crystals, the WSG-500 exhibits high toughness which is suitable for applications where high production rates are desired.

  • Metal Bond
  • Single Layer Bond

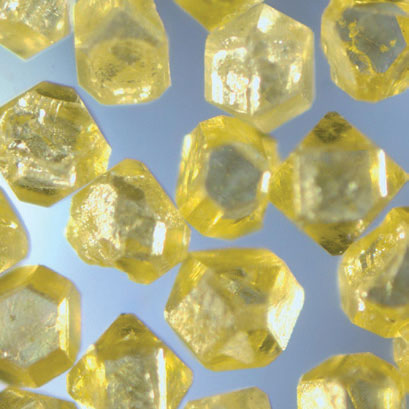

WSG-600

Low Friability

Highest grade of our mid range products with minimal internal impurities, an ideal quality diamond for demanding medium impact and low power applications.

  • Metal Bond
  • Single Layer Bond

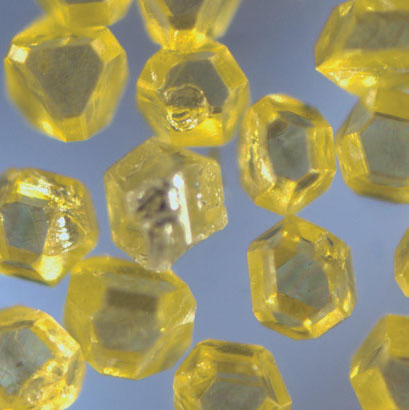

WSG-700

Low Friability

The WSG-700 is mostly crystal cubo-octahedral shaped product with low inclusions, high purity and exceptional thermal stability.

  • Metal Bond
  • Single Layer Bond

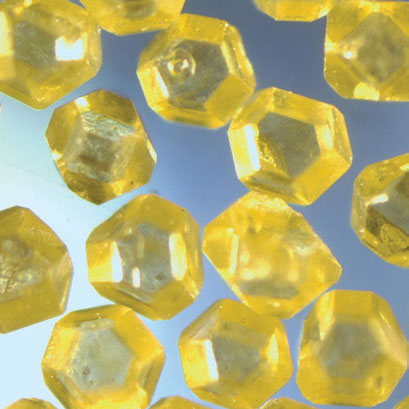

WSG-800

Very Low Friability

The WSG-800 is a high grade diamond which features a tightly controlled shape of cubo-octahedral crystals. Ideal as a high quality diamond for high performance sawing and heavy powered applications.

  • Metal Bond
  • Single Layer Bond

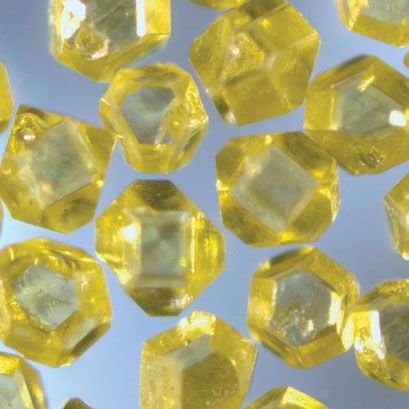

WSG-900

Very Low Friability

This highest quality grade diamond is consistently cubo-octahedal shaped offering very high strength and excellent thermal stability which is optimal for high power and very high impact sawing and drilling applications.

Resin Bond

systems are widely used for all-purpose superabrasive grinding applications in either phenolic or polyimide bonds. Resin bond systems can be utilized in either wet or dry grinding operations and offer excellent particle retention and part finish.

Vitrified Bond

systems are manufactured from ceramic materials that are strong, durable and brittle. Vitrified bonds are very effective in advanced grinding operations because of their ability to hold the abrasive and reduce heat generation in the grinding zone due to their high porosity levels when compared to other bond types.

Metal Bond

systems are the toughest formed bonds available and are recommended for wet grinding. Metal bonds exhibit high abrasive and heat resistance along with excellent form holding capabilities leading to extended tool life.

Single Layer Bond

systems (electroplated and brazed) hold a single layer of superabrasive grains bonded to a precision machined form. Electroplated systems are bonded with a Nickel matrix and leave approximately 50% of the abrasive exposed while brazed systems leave approximately 80% of the abrasive exposed. Single layer bond systems typically do not require dressing.

WWSA offers a variety of metal coatings

to further enhance the ability of metal bond systems to chemically, as well as mechanically bond to the crystals. These include Titanium applied by both sputtering and CVD techniques, Titanium Nickel and Silicon coatings.

16/18 (D1181) 18/20 (D1001) 20/25 (D851) 25/30 (D711) 30/35 (D601) 35/40 (D501) 40/45 (D426) 45/50 (D356) 50/60 (D301)
WSG-900
WSG-800
WSG-700
WSG-600
WSG-500
WSG-400
WSG-300
WSG-200
20/30 (D852) 25/35 (D712) 30/40 (D602) 35/45 (D502) 40/50 (D427) 45/60 (D357)
WSG-900
WSG-800
WSG-700
WSG-600
WSG-500
WSG-400
WSG-300
WSG-200

Ingredients

Product
Metal Bond Diamond Powder
Proprietary
No
CAS Number
7782-40-3
NIOSH Number
1004135DI
OSHA PEL
N/K
ACGIH TLV
N/K

Physical Data

Appearance
Gray to greenish yellow powder
Specific Gravity
3.48-3.52
Vapor Density
N/A
Boiling Point
N/A
Vapor Pressure
N/A
Solubility in Water
No
Percent Volatiles
N/A

Fire & Explosion Data

Flash Point
N/A
Lower Explosive Limit
N/A
Upper Explosive Limit
N/A
Extinguishing Media Unusual F&E
Chemical Powder
Hazards
Possible fire and explosion in dust form when exposed to heat, flame, or spark

Health Hazard Data

Primary Routes of Entry
Inhalation, Eye contact, Ingestion
Effect of over Exposure
Inhalation – Tissue irritation Skin contact – Tissue irritation Eye contact – Tissue irritation Ingestion – Tissue irritation

Reactivity

Stability
Stable
Conditions to Avoid
Large amounts of airborne fine powder suspended in confined areas
Incompatibility
Oxidizers and open flame
Hazardous Decomp
Carbon dioxide and water vapor
Hazardous Polymerzation
Will not occur
Conditions to avoid
N/A

Spill or Leak Procedures

Action to be taken
Minimize airborne dust generation – Provide adequate ventilation
Disposal
Clean up utilizing respiratory equipment in accordance with Local, State, and Federal Regs May be land filled

Special Protection Information

Respiratory
NIOSH/MSHA approved dust mask
Ventilation
Adequate ventilation / local exhaust
Gloves
Impervious
Eye
Chemical goggles

Special Precautions

Handling & Storage
Prevent dust from becoming airborne – Keep away from sparks and open flame – Avoid contact with eyes; flush with water – Ingestion or inhalation; seek medical attention

WWSA’s WSG products

are routinely used in a multitude of stone applications, such as quarrying, slabbing, finishing and drilling, as well as concrete applications, such as sawing, drilling and core drilling.

  • Heavy reinforced concrete / Hard aggregate
  • Medium reinforced concrete / Medium aggregate
  • Light Reinforced concrete/asphal
  • Quartz/Quarrzite
  • Ganite/Gabbro
  • Marble/Terrazzo
  • Limstone/Slate
